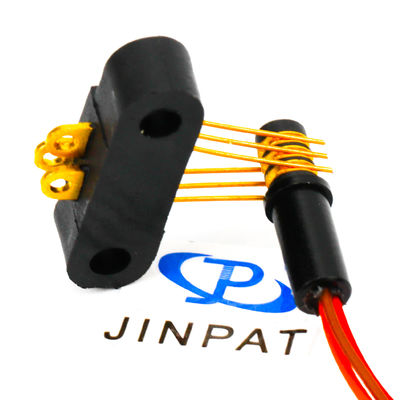

3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Circuitnummer | 3 | Huidige beoordeling | 2a |
|---|---|---|---|
| Spanning | 240 VAC | Werksnelheid | 0 tot 300 t/min |
| Werktemperatuur | -20~+60℃ | Stijl | De Ring van de capsulemisstap |
| Elektrisch geluid | ≤70mΩ | Contactmateriaal | Edelmetaal |
| Draadmaat | 32 # verzilverd koper Teflon UL | Lodd draadlengte | Rotor: 250mm; Stator: 250mm |
| Type | elektronische toebehoren | Roterende interface | Gouden contacten |
| Kleur van de draad | Met kleurcodes | Installatie | Eenvoudig te installeren |
| Ruimtebehoefte | Geschikt voor kleine ruimte | ||
| Markeren | 3 Circuits Separate Slip Ring,300 Rpm Electrical Slip Ring,240 VAC Rotary Slip Ring |
||
Productomschrijving
Separate Slip Ring with 3 Circuits 300 Rpm Working Speed for Machinery Equipment Electrical Contacts and Contact Materials
Industrial Slip Ring Description
The LPS-03 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
- Separate stator and rotor design
- Capable of transmitting power and weak signals
- Optional stator connection configurations
- Low resistance for efficient operation
- Simple installation process
- Compact design for space-constrained applications
Product Advantages
- Extended operational lifespan
- Fast delivery options
- Customization capabilities
Technical Specifications
| Circuits | 3 |
|---|---|
| Current Rating | 2A |
| Voltage | 240 VAC |
| Electrical Noise | ≤70mΩ |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Wire Specifications | 32# silver plated copper Teflon UL |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Operating Temperature | -20°C to +60°C |
Applications
- Electrical devices
- Medical facilities
- Miniature robotics
- LED lighting systems
- Compact medical equipment
- Miniature electronic devices
Product Visualization
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings. The company offers a comprehensive range of standard products including Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, and Fiber Optic Slip Rings, with full customization capabilities for specialized applications.
All products are manufactured under strict quality control standards, certified by ISO9001:2008 and ISO14001:2015 quality management systems.
