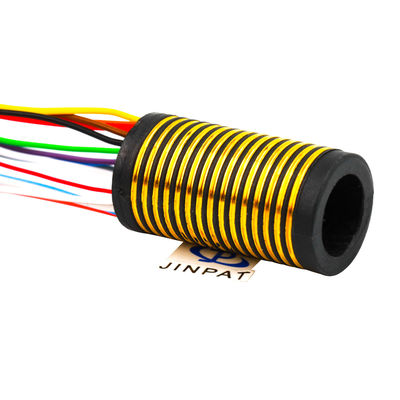

15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Maximale snelheid | 100 tpm | Aantal circuits | 15 |
|---|---|---|---|
| Spanning | 240 VAC/DC | Huidige beoordeling | 2a |
| Temperatuurbereik | -20 ℃ tot +60 ℃ | Werkvochtigheid | 60% RH of hoger |
| Contactmateriaal | Goud aan Goud | Loodgrootte | 28 # zilveren geplateerd koper |
| Loodlengte | Standard 250 mm (9.843inch) | Diëlektrische sterkte | ≥200 Vac @50Hz, tussen elk circuit |
| Lichaamsmateriaal | Engineering plastic | Isolatieweerstand | 50 MΩ @ 500 VDC |
| Elektrisch geluid | ≤ 35 MΩ | Werksnelheid | 0-100 t/min |
| Bandbreedteoverdracht | Hoog | ||
| Markeren | 15 Circuit Slip Ring,100 rpm Separate Slip Ring,250mm Lead Length Rotary Electrical Connector |
||
Productomschrijving
15 Circuit Smooth Running Low Electrical Noise Separate Slip Ring
Gold to Gold Contact for Electrical Contacts Contact Materials
Separate slip ring consists of two parts: rotor and brush block. The rotor part can have a through bore type, making it suitable for space-limited installations. This slip ring can use pins instead of lead wires to handle larger currents.
The LPS-15 is a standard unit featuring gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.
Key Advantages
- 250mm standard lead length
- Gold to gold contact materials for extended lifespan
- Flexible, color-coded, silver-plated wiring
- Capable of transmitting both power and signal data
- High bandwidth transfer capability
Primary Applications
- Indexing tables
- CCTV pan/tilt camera mounts
- Robotics and rotary sensors
- Emergency illumination equipment
- Exhibit and display equipment
- Medical equipment
- Aviation, military, and instrumentation
- Miniature wire-rolling machines
Customization Options
- Circuits & current capacity
- Operational speed
- Dimensions
- Lead wire length
- Contact and housing materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Speed | 0-100 rpm |
| Number of Circuits | 15 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A |
| Temperature Range | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Contact Material | Gold to Gold |
| Lead Size | 28 AWG silver-plated copper |
| Lead Length | Standard 250 mm (9.843 inch) |
| Dielectric Strength | ≥200 VAC @50Hz between circuits |
| Body Material | Engineering plastic |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | ≤35mΩ |
