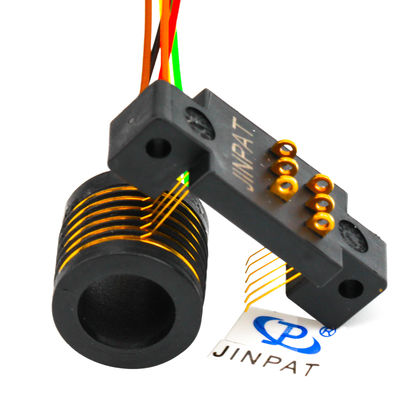

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment

  • 6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
Plaats van herkomst Guangdong, China
Merknaam JINPAT
Modelnummer LPS-06
Min. bestelaantal 1
Prijs $35

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Circuitnummer 6 Huidige beoordeling 2a
Spanning 240 VAC Werksnelheid 0 tot 300 t/min
Werktemperatuur -20~+60℃ Diëlektrische sterkte 500V@50Hz tussen circuits
Isolatie 100MΩ@500VDC Contactmateriaal Edelmetaal
Draadmaat 28 # verzilverd koper Teflon UL Lodd draadlengte Rotor: 250 ± 5 mm
Stijl afzonderlijke misstapring Statorverbinding Optioneel
Draadtype Kleurgecodeerde aansluitdraden Interfacemateriaal Gouden contacten
Installatietype Eenvoudig te installeren
Markeren

6 Circuit Separate Slip Ring

,

240V Voltage Electrical Slip Ring

,

0~300 RPM Rotary Slip Ring
Productomschrijving
6 Circuit Separate Slip Ring with 240V Voltage for Electrical Test Equipment
Premium Quality Slip Ring for Continuous Rotation Applications
The LPS-06 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
  • Separate stator and rotor design
  • Capable of transmitting power and weak signal combinations
  • Optional stator connection configurations
  • Low electrical resistance
  • Simple installation process
  • Compact design for space-constrained applications
Performance Advantages
  • Extended operational lifespan
  • Rapid delivery available
  • Customization options to meet specific requirements
Technical Specifications
Parameter Value
Circuits 6
Current Rating 2A
Voltage 240 VAC
Dielectric Strength 500V@50Hz between circuits
Insulation 100MΩ@500VDC
Working Speed 0-300 RPM
Contact Material Precious metal
Wire Specification 28# silver plated copper Teflon UL
Lead Wire Length Rotor: 250±5mm
Operating Temperature -20°C to +60°C
Typical Applications
  • Electrical testing equipment
  • CT scanning machines
  • Compact robotic systems
  • LED display technology
  • Miniature electronic devices
Product Visualization
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 0
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 1
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings for diverse applications. The company maintains a comprehensive product line including capsule slip rings, through-bore slip rings, high-current slip rings, and custom solutions for specialized interfaces.
Corporate Advantages
  • 12,000+ square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise
  • Holder of 69 technology patents
  • Global partnerships with industry leaders
  • 10,000+ successful design implementations
  • 20+ years of research and development experience
  • Complimentary custom engineering solutions
  • Expedited order fulfillment
Visit JINPAT Electronics
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 2
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 3
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 4
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 5
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 6
