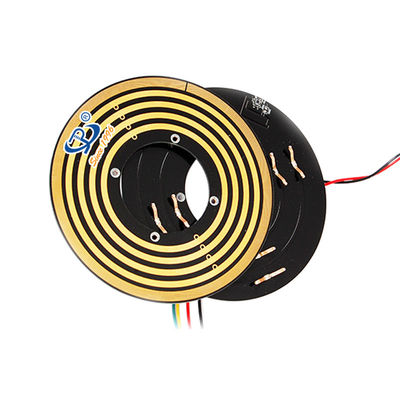

40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine

  • 40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine
Plaats van herkomst China
Merknaam JINPAT
Certificering ISO/CE/RoHS/UL
Modelnummer LPKS040-0501
Min. bestelaantal 10 STUKS
Prijs negotiable

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Circuits 5 circuits Spanningswaarde 24V
Huidige beoordeling 1A per circuit Contactmateriaal Edelmetaal
Werksnelheid 0~150rpm Binnendiameter Φ40mm
Diëlektrische sterkte ≥ 300V@50Hz Woningmateriaal FR-4
Isolatieweerstand 100MΩ@100VDC Draadlengte Statordraad: 300 mm Rotordraad: 300 mm
Bedrijfstemperatuur -20 ° C ~+60 ° C Vochtigheid ≤60%RH
Roterende snelheid Hoog Installatiemethode Printplaat bevestigd op flens
Dikte 6 mm
Markeren

40 mm Inner Diameter Pancake Slip Ring

,

5 Circuits Flat Slip Ring

,

24V Voltage Rating LPK Series Slip Ring
Productomschrijving
ID 40 mm 5 Circuits Flat Slip Ring with Optional Voltage for Coiling Machine
Product Overview

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The central hole design with surrounding copper ring and brush contact maximizes space efficiency.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight construction
  • Exceptionally low physical noise operation
  • Continuous 360° rotation for power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-configured photoelectric encoder option
  • Available with solid or hollow shaft configurations
  • Fast delivery times
  • Custom engineering solutions available
Technical Specifications
Electrical Specifications Mechanical Specifications
Circuits 5 circuits × 1A Working Speed 0-150 rpm
Working Voltage 24V Contact Material Nobel Metal
Dielectric Strength ≥300V@50Hz Housing Material FR-4
Insulation 100MΩ@100VDC Wire Length Stator/Rotor: 300mm each
Environmental Specifications Additional Information
Temperature Range -20°C to +60°C Installation Method PCB board mounts to customer's flange
Humidity ≤60% RH Inner Diameter Φ40mm
Industrial Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display machinery
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 0
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 1
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 2
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 3
