JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots

  • JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots
  • JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots
Plaats van herkomst CHINA
Merknaam JINPAT
Certificering ISO/CE/RoHS/UL
Modelnummer LPC-36A-0215-01S (ARX-012)
Min. bestelaantal 10 STUKS
Prijs negotiable
Verpakking Details Standaard/op aanvraag
Levertijd 2 weken Ao
Levering vermogen 100 eenheden/Week
Productdetails
Circuits 1 circuit*Videosignaal 2 circuits*15A Beoordelingsspanning 0~240V AC/DC
Roterende snelheid 0 ~ 300 tpm Schommelingswaarde contactweerstand ≤35mΩ (50 tpm)
Draadlengte (mm) Rotor/Stato: r500 ± 5 mm Contactmateriaal Goud aan Goud
Woningmateriaal Technische kunststoffen Werktemperatuur -20 ° C ~+60 ° C
Werkvochtigheid ≤60%RH Beschermingsniveau (IP) IP40
Markeren

2 Circuits Rotary Slip Ring

,

0-100 rpm Operating Speed Slip Ring

,

0~240V AC/DC Electrical Slip Ring
Productomschrijving

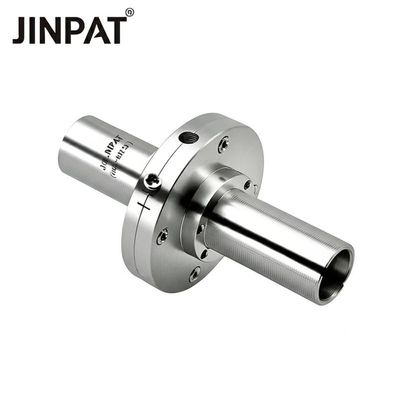

JINPAT LPC-36A-0215-01S（ARX-012） Rotary Slip Ring for Pipeline Robot
Product Overview

Pipeline Robot Slip Ring - LPC-36A-0215-01S (ARX-012)

JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots 0
Technical Specifications
Attribute Value
Circuits 1 circuit*Video signal 2circuits*15A
Rating Voltage 0~240V AC/DC
Rotating Speed 0~300rpm
Contact resistance fluctuation value ≤35mΩ(50rpm)
Wire length(mm) Rotor/Stator: 500±5mm
Contact Material Gold To Gold
Housing Material Engineering Plastics
Working Temperature -20°C~+60°C
Working Humidity ≤60%RH
IP Rating IP40
Key Features & Advantages

This slip ring features reliable electrical connections for stable power and signal transmission. Available in multiple types and specifications, it offers excellent performance and long service life under demanding conditions.

Structural Features
  • Unique electrical connection capabilities, enabling energy and signal transmission
  • Diverse types and specifications
  • Excellent performance
  • Wide range of applications

With its versatile design, this slip ring is ideal for various industrial applications — particularly pipeline inspection robots, where compact size and high reliability are essential.

For more details about this slip ring product, please contact JINPAT. We provide customized solutions to meet your specific requirements.
