High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise

  • High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise
Plaats van herkomst Guangdong, China
Merknaam JINPAT
Modelnummer LPC-1C1202
Min. bestelaantal 1
Prijs $85

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Bandbreedte 50 MHz-3GHz Signaaltype SDI
Beschermingscijfer IP54 Werksnelheid 50 tpm
Circuits 12 Huidige beoordeling 2A of hoger
Spanning 240VAC Werktemperatuur -20~+60℃
elektrisch contact Goud aan Goud Vochtigheid 60% RH
Lodd draadlengte Rotor: 250mm; Stator: 250mm Isolatieweerstand 1000mΩ@500VDC
Woningmateriaal Aluminiumlegering Karakteristieke impedantie 50Ω
Rotatie 360° ononderbroken
Markeren

high frequency RF slip ring

,

50MHz-3GHz SDI slip ring

,

low noise rotary slip ring
Productomschrijving
High Frequency RF Slip Ring
360° continuous rotation with compact design for electrical applications
Product Attributes
Attribute Value
Type Electronic Accessories
Bandwidth 50MHz-3GHz
Signal SDI
Features Remote Control
Advantage Low electrical noise
Product Description

The LPC-1C1202-A slip ring is a specialized unit with RF Coaxial Connector featuring a bandwidth of 50MHz-3GHz. Color-coded lead wires on both stator and rotor simplify electrical connections.

Utilizing a 90° V-groove ring design, the LPC-1C1202 delivers smoother operation, lower torque, and reduced electrical noise compared to competitive models.

Technical Parameters
Parameter Value
Protection Grade IP54
Working Speed 50 RPM
Circuits 12
Current Rating 2A or higher
Voltage 240VAC
Working Temperature -20°C to +60°C
Electric Contact Material Gold to Gold
Humidity 60%RH
Lead Wire Length Rotor: 250mm; Stator: 250mm
Insulation 1000MΩ@500VDC
Housing Material Aluminum Alloy
Characteristic Impedance 50Ω
Key Advantages
  • Low torque minimizes system torque budget
  • Compact design fits demanding space requirements
  • Smooth running operation
  • Low electrical noise for clean signal transmission
  • Quick shipment available for urgent requirements
  • 360° continuous rotation capability
  • High bandwidth transfer performance
  • SDI signal transfer capability
Typical Applications
  • Electrical test equipment
  • Manufacturing and process control systems
  • Indexing tables
  • CCTV pan/tilt camera mounts
  • Robotics and rotary sensors
  • Emergency illumination equipment
  • Exhibit and display systems
  • Aviation, military, medical, and instrumentation equipment
Product Visuals

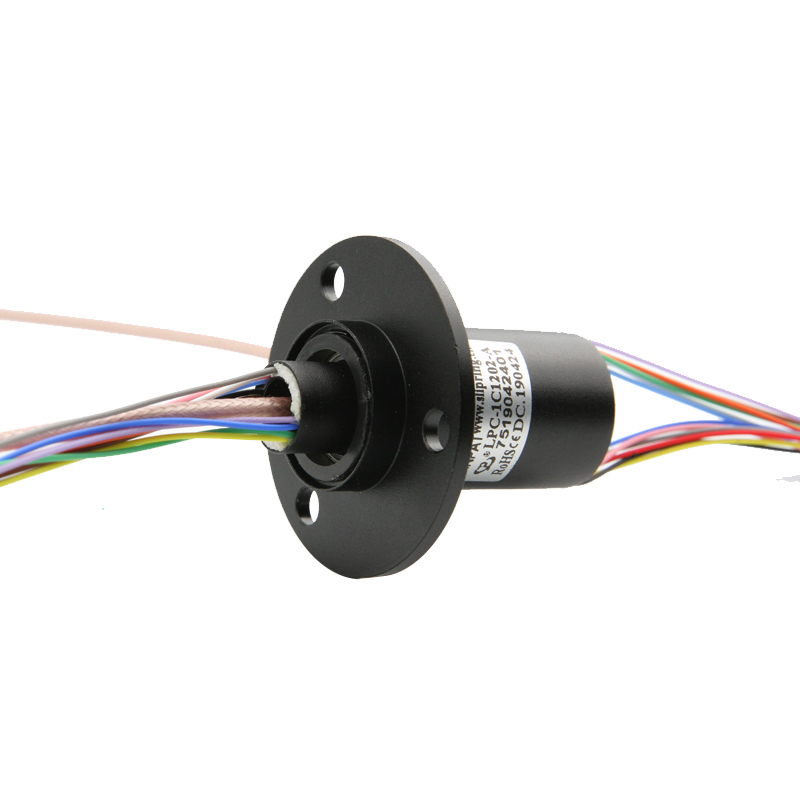

High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise 0 High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise 1
