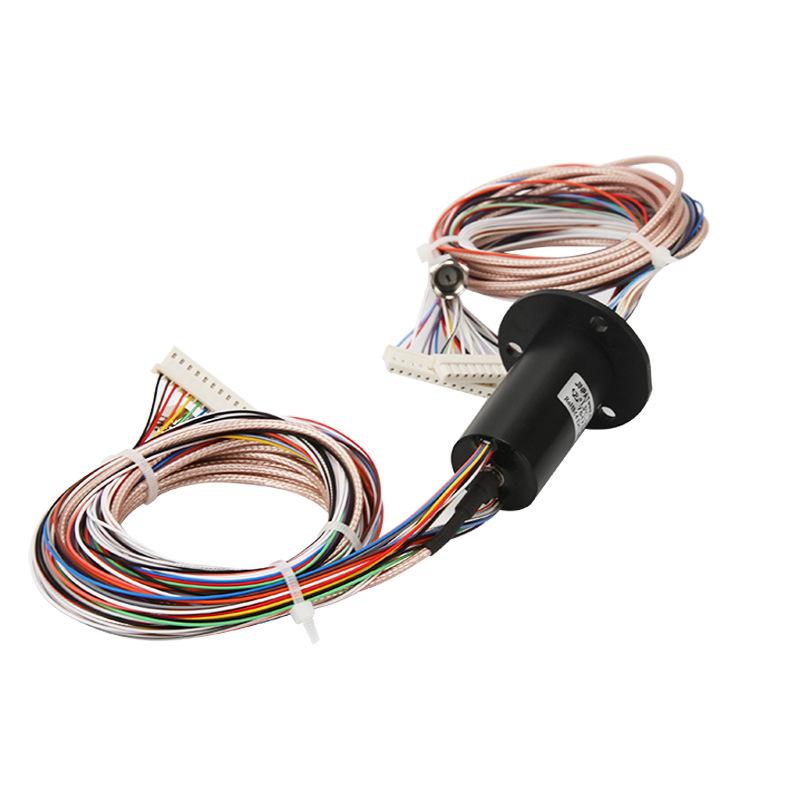

JINPAT LPC Capsule Slip Ring 240VAC Gold Contact 300rpm

  • JINPAT LPC Capsule Slip Ring 240VAC Gold Contact 300rpm
Plaats van herkomst Guangdong, China
Merknaam JINPAT
Modelnummer LPC-1C2402
Min. bestelaantal 1
Prijs $110

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Beoordelingsspanning 240 VAC/DC Roterende snelheid 0 ~ 300 tpm
Contactmateriaal Goud aan Goud Circuits 24 kringen
Diëlektrische sterkte 500VAC@50Hz (P) 300VAC@50Hz (s) Isolatieweerstand ≥100mΩ@500VDC (P) ≥100mΩ@100VDC (s)
Draadlengte Stator: 250 mm, rotor: 250 mm Grootte van de looddraad Awg28 #
Temperatuurbereik -20 ° C ~+60 ° C Vochtigheid ≤60%RH
Frequentiebereik 0-3GHz Specifieke Impedantie 50/75Ω
Invoegverlies <1,2db VSWR < 1.6
Kabelmaat RG316/RG179
Markeren

LPC capsule slip ring 240VAC

,

gold contact slip ring 300rpm

,

rotary slip ring with warranty
Productomschrijving
JINPAT LPC Capsule Slip Ring - 240VAC IP40, Precious Metal
Product Attributes
Attribute Value
Type Electronic Accessories
Rotating Speed 0~300rpm
Contact Material Gold To Gold
Life span Customizable
Product Description

High frequency slip ring is a product specially developed to meet high-speed serial digital signal or analog signal transmission.

This series of products support high-frequency signal transmission, and also support mixed transmission of high-frequency signal and 24V control signal, communication signal, power supply, fluid medium. The high-frequency signal adopts 50/75Ω characteristic impedance RF coaxial structure head.

Key Features
  • Gold-gold contact on the contact material, which can meet the service life of 100 million revolutions
  • 90-degree V-groove design can rotate 360 degree smoothly and unlimitedly, with low torque, low wear, and low electronic noise
  • Anti-aging and high temperature resistance
Technical Specifications
Electrical & Electronics Mechanical
Circuits total 24circuits Rotating Speed 0~300rpm
Rating Voltage 240 VAC/DC Contact Material Gold To Gold
Dielectric Strength 500VAC@50Hz(P) 300VAC@50Hz(S) Housing Material Engineering Plastics
Insulation Resistance ≥100MΩ@500VDC (P) ≥100MΩ@100VDC (S) Wire Length Stator: 250mm
Rotor: 250mm
Lead Wire Size AWG28 #
Environmental Others
Temperature -20°C~+60°C Life span Customizable
Humidity ≤60%RH Note "P" stands for power, "S" stands for signal
Protection grade Customizable
Coaxial Parameter
Connect Model BNC/SMA Frequency range 0-3GHz
Specific Impedance 50/75Ω Housing Material Brass
Insertion Loss <1.2dB Contact Material Precious Metal
Insertion Loss-WOW <0.1dB Cable Size RG316/RG179
VSWR <1.6 Cable Length Stator: 250mm
Rotor: 250mm
VSWR-WOW <0.1
Outline Drawing
JINPAT LPC Capsule Slip Ring 240VAC Gold Contact 300rpm 0
Our Advantages
  • With a large plant of over 12,000 square meters and more than 500 employees
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
  • Long-term cooperation with global famous enterprises and agents all over the world
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications
  • Founded in 1996, with more than 20 years of production and R & D experience
  • Providing free custom slip rings solutions, which can be suitable for a variety of equipment
  • Fast delivery
FAQ
What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

What kinds of slip rings do we provide?
  • Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
  • Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

Do you provide custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
