6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment

  • 6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment
Plaats van herkomst Guangdong, China
Merknaam JINPAT
Modelnummer LPM-06B
Min. bestelaantal 1
Prijs $10

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Circuitnummer 6 Huidige beoordeling 1a
Spanning 240VAC Diëlektrische sterkte ≥500V@50Hz tussen circuits
Isolatie 100MΩ@500VDC Elektrisch geluid ≤15mΩ
Werksnelheid 0 tot 300 t/min Contactmateriaal Edelmetaal
Draadmaat 30# verzilverd koper UL, teflon Lodd draadlengte Rotor: 250mm; Stator: 250mm
Werktemperatuur -20~+60℃ Vochtigheid ≤60%RH
Beschermingscijfer IP54 Stijl De Ring van de capsulemisstap
Contacttype Gouden contacten
Markeren

6 circuit mini slip ring

,

240VAC high precision slip ring

,

1A rotary slip ring
Productomschrijving
Slip Ring VW 6 Wires with 1A Current & Low Electrical Noise
High Precision Mini Slip Ring for Industrial Applications
Key Features
  • 6 circuits with 1A current rating
  • Low electrical noise (≤15mΩ)
  • Gold contacts at rotary interface
  • Color-coded lead wires for easy installation
  • Compact capsule slip ring design
Product Specifications
Attribute Value
Type Electronic Accessories
Circuit Number 6
Current Rating 1A
Voltage 240VAC
Working Speed 0~300 rpm
Working Temperature -20~+60℃
Style Capsule slip ring
Dielectric Strength ≥500V@50Hz between circuits
Insulation 100MΩ@500VDC
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Humidity ≤60%RH
Protection Grade IP54
Product Description

The LPM-06B miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.

Applications
  • Electric devices
  • Medical facilities
  • Industrial machinery
  • LED industry
  • Medical equipment
  • High-precision facilities
Product Images

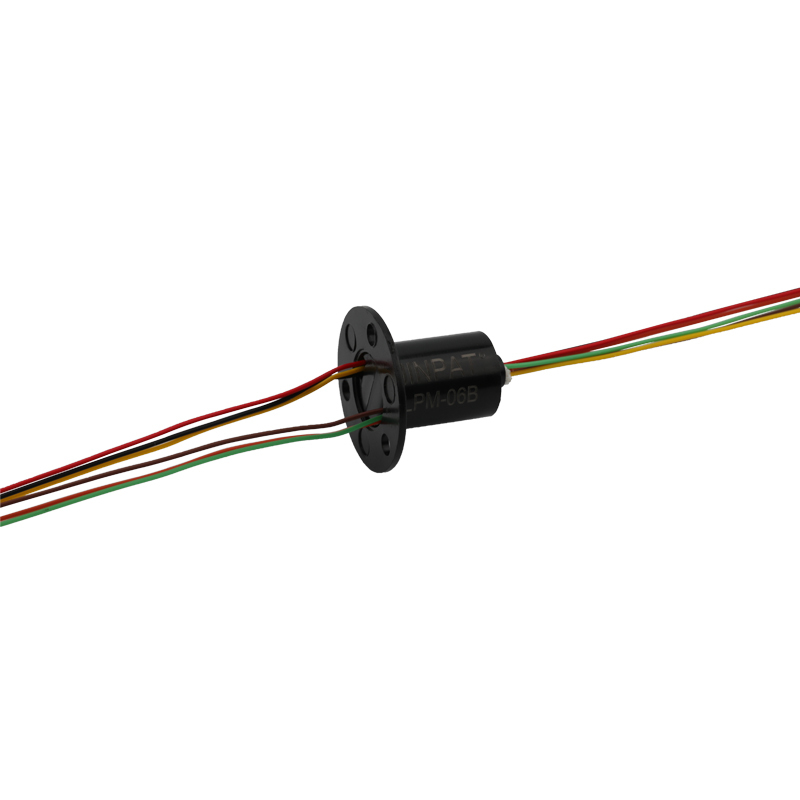

6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment 0 6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment 1
Manufacturer Advantages
  • 12,000 square meter plant with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • 20+ years of production and R&D experience since 1996
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Free custom slip ring solutions available
  • Fast delivery times
Frequently Asked Questions
What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from a stationary to a rotating structure. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires.

How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
