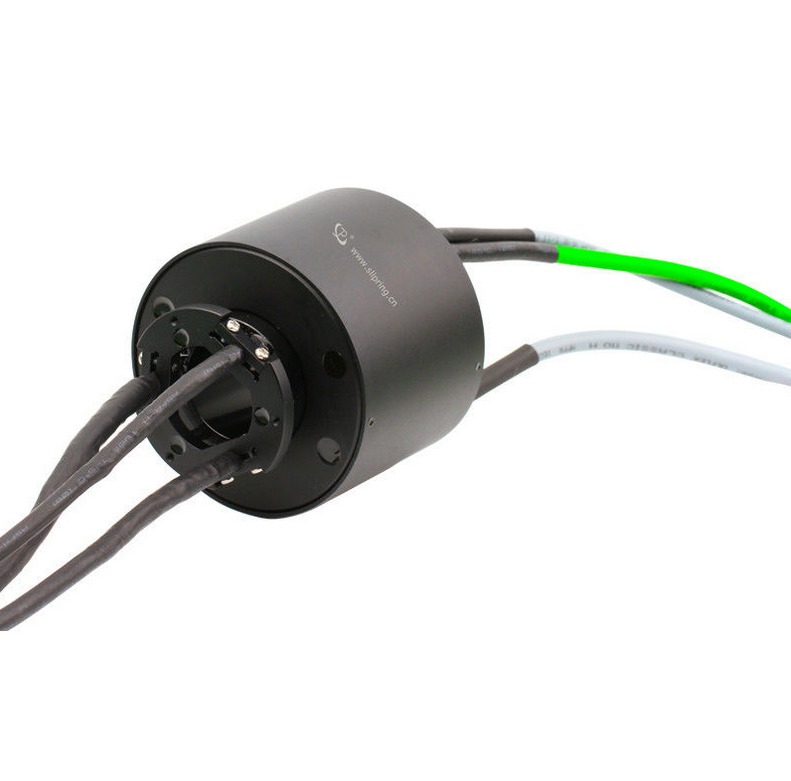

15 Circuit Through Bore Ethernet Slip Ring for Power and Signal

  • 15 Circuit Through Bore Ethernet Slip Ring for Power and Signal
Place of Origin Guangdong, China
Merknaam JINPAT
Model Number LPT038-0605
Minimum Order Quantity 1
Prijs $99.60-120

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Circuits 15 circuits Operating Speed 0-300rpm
Voltage Rating 380VAC/24VAC Electric Noise 70mΩ Min
Working Voltage 380VAC/24VAC Dielectric Strength ≥1000V@50Hz(current), 300V@50Hz(signal)
Insulation Resistance 500MΩ@500VDC(current), 100MΩ@300VDC(signal) Through Bore Φ38.1mm
Contact Material Precious Metal Housing Material Aluminum Alloy
Wire Length Rotor:3000mm, Stator:1000mm Temperature Range -20°C~+60°C
Humidity ≤60%RH IP Rating IP50
Wire Size Lapp 10019917 wire/ Lapp 0028892 wire Simens Wires (6XV1840-2AH10)
Markeren

15 circuit through bore slip ring

,

ethernet slip ring for power

,

through hole slip ring signal
Productomschrijving
Through Bore Ethernet Slip Ring 15 Circuits, Transmitting Current and Signal
Product Attributes
Attribute Value
Type Electronic Accessories
Circuits 15 circuits
Operating Speed 0-300rpm
Voltage Rating 380VAC/24VAC
Electric Noise 70mΩ Min
Product Overview
Bargain Price Only in Alibaba

LPT038 series slip ring is a standard through-hole conductive slip ring with multiple channels and current options.

  • 360 degree infinite rotation, meeting the hybrid transmission of power and signal
  • Advanced fiber brush technology ensures low friction, low contact resistance, frictionless debris, and maintenance-free operation
  • Standardized, modular design with mature technology for quick response to market demand
Applications
  • Process control equipment
  • Emergency lighting, robotics, palletizing machines
  • Heavy equipment turrets or cable reels
  • Packaging/wrapping machinery
  • Medical equipment
  • Rotary index tables
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • High-speed cameras
Technical Specifications
Circuits 5 circuits × RS422 Signal, 6 circuits × 5A, 4 circuits × Ethernet
Working Voltage 380VAC/24VAC
Dielectric Strength Between circuits ≥1000V@50Hz (current), 300V@50Hz (signal)
Insulation 500MΩ@500VDC (current), 100MΩ@300VDC (signal)
Electrical Noise ≤70mΩ (50rpm)
Working Speed 0~300 rpm
Through Bore Φ38.1mm
Contact Precious Metal
Housing Aluminum Alloy
Wire Size Lapp 10019917 wire/Lapp 0028892 wire Simens Wires (6XV1840-2AH10)
Wire Length Rotor: 3000mm, Stator: 1000mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP Rating IP50
15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 0 15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 1
Competitive Advantages
  • Compact design to fit in demanding space constraints
  • Low torque minimizes system torque budget
  • Rapid delivery
  • Long operational lifetime
Installation Instructions
The slip ring body shall not be used for bearing, and the wire shall not be subjected to external pulling force. When installing, the rotor and stator should not be hard-wired. We recommend fixing the slip ring on the rotating shaft with four set screws, inserting the rotation-proof piece, and combing the wire to avoid interference or breakage. Slip rings are precision electrical components - in harsh environments, add protective measures or consider a custom-made slip ring with higher protection.
Company Advantages
  • 12,000 square meter facility with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • Long-term partnerships with global enterprises and worldwide agents
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for diverse equipment requirements
  • Fast delivery capabilities
15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 2
Typical Applications
15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 3
Company Information
15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 4 15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 5 15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 6 15 Circuit Through Bore Ethernet Slip Ring for Power and Signal 7
Frequently Asked Questions
1. What do we do?

We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.

3. What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
4. How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.

5. Do you offer custom slip rings?

Yes, our engineers will develop perfect solutions for your specific needs. Contact us to begin your custom slip ring project.
