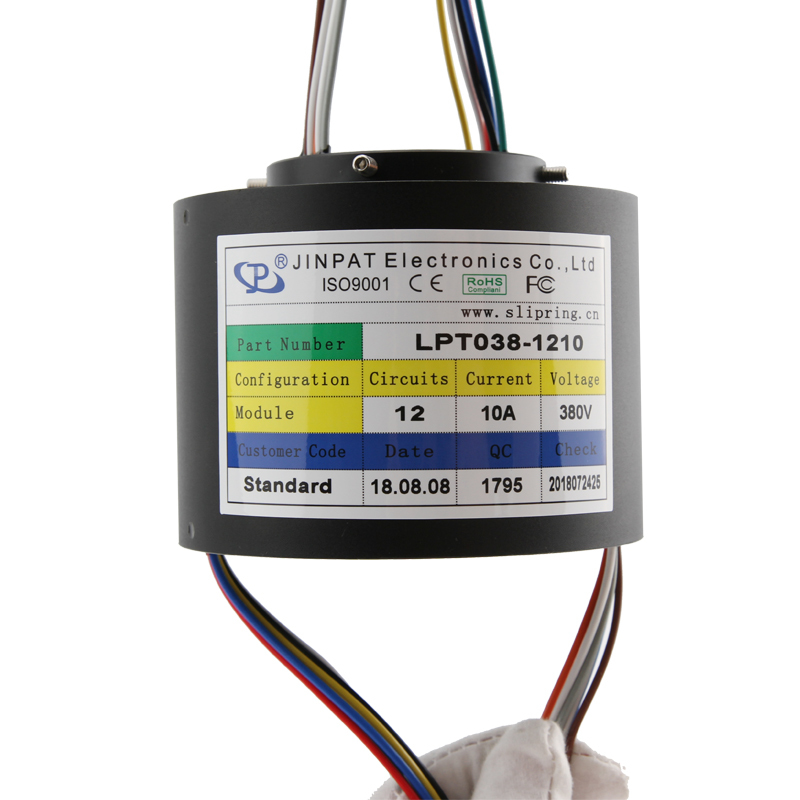

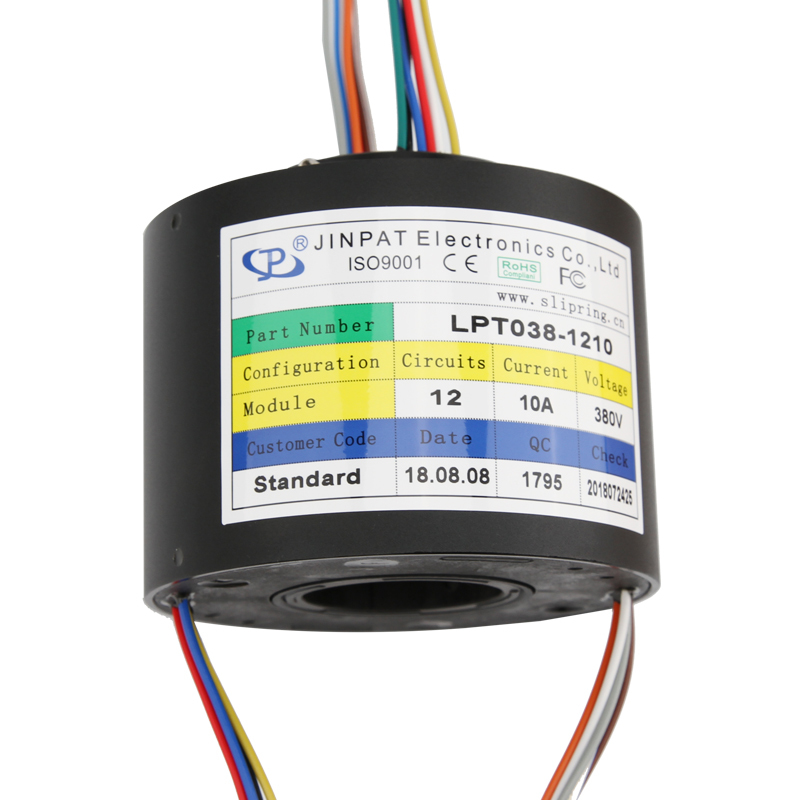

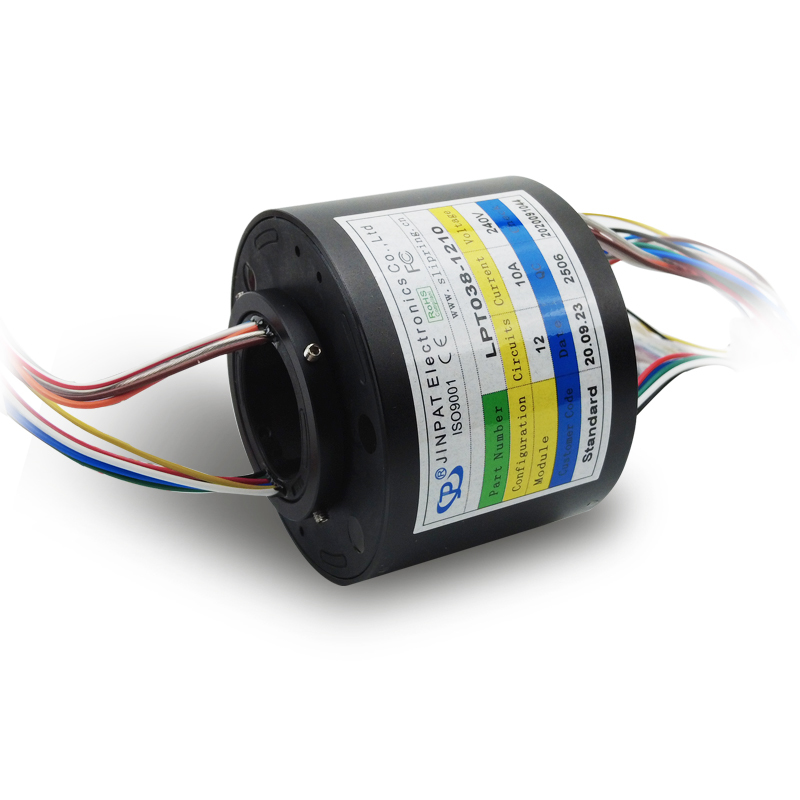

38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM

  • 38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM
  • 38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM
  • 38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM
Place of Origin Guangdong, China
Merknaam JINPAT
Model Number LPT038-1210
Minimum Order Quantity 1
Prijs $127-153

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Hole Diameter 38.1 mm Working Speed 0~300 RPM
Contact Material Precious metal Circuits 12
Current Rating 10A Voltage 240 VAC/DC
Dielectric Strength ≥1000V@50Hz between circuits Insulation Resistance ≥500MΩ@500VDC
Housing Material Aluminum alloy Working Temperature -20~+60℃
Humidity ≤60%RH Protection Grade IP50
Speed 300 rpm continuous Bearings Precision ball bearings
Torque Low torque
Markeren

38.1mm through hole slip ring

,

12 circuits slip ring 10A

,

300RPM slip ring with warranty
Productomschrijving
Through Hole Slip Ring

Available with hole diameters from 3mm to 500mm and current ratings from 2 amps to 1000 amps.

Key Attributes
Attribute Value
Type Electronic Accessories
Hole Diameter 38.1 mm
Working Speed 0~300 RPM
Contact Precious metal
38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM 0
Technical Specifications
Circuits 12
Current Rating 10A
Voltage 240 VAC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Housing Aluminum alloy
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP50
Outline Dimensions
38.1mm Through Hole Slip Ring 12 Circuits 10A 300RPM 1
Product Features
  • 16 circuits through bore slip ring
  • Precious metal contacts
  • 10 A per wire
  • Precision ball bearings for long life
  • Speed up to 300 rpm continuous
  • Compact size
  • Sealed units available
  • Low torque minimizes system torque budget
  • Rapid delivery
Typical Applications
  • Radar antenna
  • Rotary Platform
  • Engineering machine
  • Packaging Machine
  • Test Equipment
Installation Instructions

The slip ring body shall not be used for bearing, and the wire shall not be subjected to external pulling force.

When installing the slip ring, the rotor and the stator can not be hard-wired. It is recommended to fix the slip ring on the rotating shaft with four set screws, insert the rotation-proof piece into the rotation-proof piece, and comb the wire to avoid interference or breakage of the wire.

Slip rings are precision electrical components. If the environment is harsh, add protective measures or use a custom-made slip ring with a higher degree of protection.

Company Advantages
  • Large production facility of over 12,000 square meters with more than 500 employees
  • National High and New Technology enterprise with 69 patents
  • Long-term cooperation with global enterprises and worldwide agents
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Founded in 1996 with more than 20 years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery service
Frequently Asked Questions
What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures, improving mechanical performance and eliminating damage-prone wires.
What kinds of slip rings do we provide?
We offer electrical slip rings, signal slip rings, pneumatic/hydraulic rotary unions, custom slip rings, and large volume series.
How do I choose a slip ring?
Selection requires details about your application's operating parameters including circuits, voltage/amps, speed, and mounting type. Contact us for assistance.
Do you provide custom slip rings?
Yes, our engineers will develop perfect custom solutions for your specific requirements.
